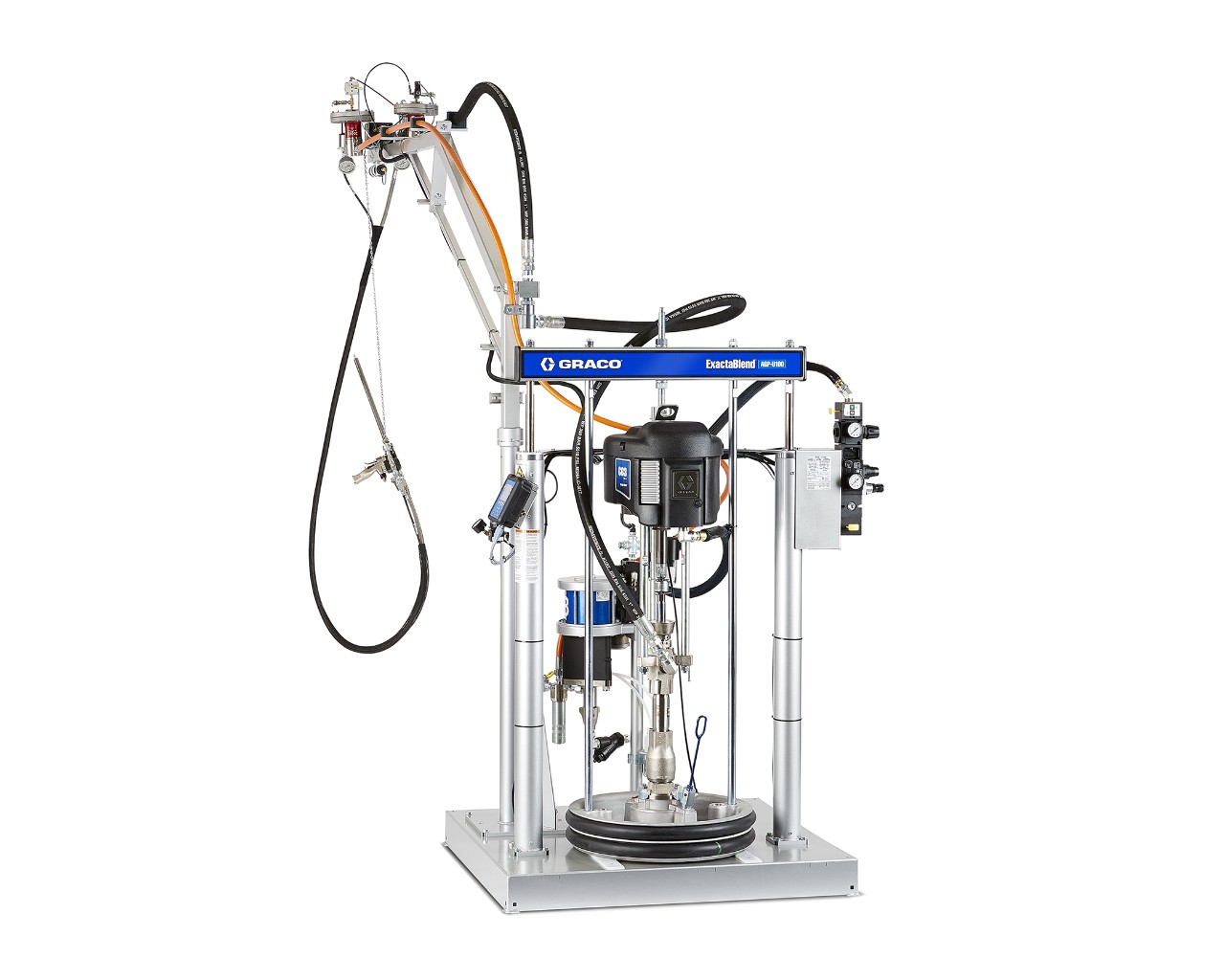

ExactaBlend AGP Advanced Glazing Proportioner
For sealant and adhesive applications in curtainwall and insulating glass
The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Superior mixing and ratio assurance for the glass industry
- Easy to operate
- Green light indicates on-ratio dispensing
- System automatically shuts down if off-ratio conditions exist
- Optimal mixing and on-ratio proportioning capabilities for quality assurance
- Quick and easy base purge reduces material waste
- Optional data download provides reports on ratio, flow rate and material usage
|
ExactaBlend AGP Advanced Glazing Proportioner |
|
|
Maximum fluid working pressure : MD2 or Ultra-lite with flexible hose mixer Installed |
21 MPa, 207 bar |
|
Maximum fluid working pressure :Ultra-lite with Tri-core mixer Installed |
28 MPa, 276 bar |
|
Incoming Air pressure required: Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type. |
0.6-0.7 MPa, 6.0-7.0 bar |
|
Maximum operating temperature |
50°C |
|
Voltage range |
90-264 VAC 50/60 Hz 1 phase |
|
Maximum amperage |
4 |
|
Sound pressure: Sound pressure measured 3.3 feet (1 meter) from equipment. |
82 dB(A) |
|
Wetted parts: Refer to specific component manual for more details. |
Zinc-plated carbon steel, aluminum ram plate, nitrile rubber wipers, chrome, stainless steel, UHMW polyethylene, PTFE, nylon, Buna-N |
|
Inlet/Outlet Sizes |
|
|
Fluid outlet base |
1/2 npt (f) |
|
Fluid outlet catalyst |
1/4 npt (f) |
|
Air inlet size |
3/4 npt (f) |
|
Weight |
|
|
All models |
392 kg |
